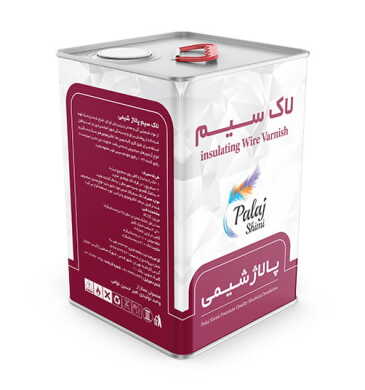

لاک سیم پالاژ شیمی | لاک عایق الکتروموتور با مقاومت حرارتی 210 درجه سانتیگراد
لاک سیم پالاژ شیمی یک لاک عایق الکتریکی پایه رزین پلی‌یورتان اشباع‌شده (Saturated Polyurethane) است که از ترکیب مواد شیمیایی آلی و معدنی با خلوص بالا تولید می‌شود. این محصول با ایجاد پوششی براق، یکنواخت و با چسبندگی بسیار بالا، موجب تثبیت مکانیکی سیم‌پیچ و افزایش مقاومت الکتریکی و حرارتی آن می‌گردد.

این لاک برای عایق‌کاری و ایمپرگنیشن (Impregnation) انواع بوبین، الکتروموتورهای سبک و سنگین، دینام، ترانسفورماتور و آرمیچرهای سیم‌پیچی شده طراحی شده است.

ویژگی‌های کلیدی لاک سیم پالاژ شیمی
چسبندگی فوق‌العاده به سیم مسی و سیم لاکی
مقاومت حرارتی بالا تا 210 درجه سانتی‌گراد
افزایش مقاومت دی‌الکتریک
نفوذپذیری مناسب در لایه‌های سیم‌پیچ
ایجاد لایه محافظ در برابر رطوبت و گرد و غبار
کاهش لرزش، صدای موتور و حرکت سیم‌ها
افزایش طول عمر تجهیزات الکتریکی
مناسب برای سیستم‌هایAC و DC

موارد مصرف
لاک سیم پالاژ شیمی برای عایق‌بندی و تثبیت سیم‌پیچ در تجهیزات زیر استفاده می‌شود:
دینام
الکتروموتورهای صنعتی سنگین
الکتروموتورهای سبک
ترانسفورماتور
آرمیچر
بوبین‌های صنعتی
تجهیزات سیم‌پیچی شده AC/DC

مشخصات فنی
نوع جریان: AC / DC
زمان خشک شدن در دمای 25 درجه سانتیگراد: 2 تا 4 ساعت
مقاومت حرارتی: 210 درجه سانتیگراد
نقطه اشتعال: 110 درجه سانتیگراد
پایه رزین: پلی‌یورتان اشباع‌شده
نوع کاربرد: عایق الکتریکی و تثبیت سیم‌پیچ

نحوه آماده‌سازی و رقیق‌سازی
محتویات حلب را با رقیق‌کننده 1124 پالاژ شیمی به میزان مناسب رقیق کرده و کاملاً مخلوط نمایید تا ویسکوزیته مطلوب حاصل شود.
میزان رقیق‌سازی بسته به روش اجرا (غوطه‌وری یا قلم‌مو) قابل تنظیم است
.
روش مصرف
ریختن مقدار کافی لاک روی سیم‌پیچ
غوطه‌ور نمودن کامل قطعه در ظرف لاک
آغشته کردن نقاط حساس با قلم‌مو
خشک شدن در دمای محیط (25 درجه سانتی‌گراد)

در صورت نیاز به خشک شدن سریع‌تر، استفاده از خشک‌کن صنعتی با دمای کنترل‌شده توصیه می‌شود.

مزایای استفاده از لاک سیم با کیفیت صنعتی
جلوگیری از اتصال کوتاه
افزایش استحکام مکانیکی سیم‌پیچ
محافظت در برابر رطوبت، آلودگی و خوردگی
افزایش راندمان و ایمنی موتور
کاهش هزینه‌های تعمیر و نگهداری

چرا لاک سیم پالاژ شیمی؟
در فرآیند سیم‌پیچی صنعتی، کیفیت لاک عایق مستقیماً بر عملکرد، ایمنی و دوام موتور تأثیر دارد. لاک سیم پالاژ شیمی با مقاومت حرارتی 210 درجه سانتی‌گراد و فرمولاسیون صنعتی، گزینه‌ای قابل اعتماد برای تولیدکنندگان موتور و تعمیرکاران حرفه‌ای است
.
بسته‌بندی و فروش
موجود در بسته‌بندی‌های:
نیم لیتری
1 لیتری
گالن 4 لیتری
نیم حلب 10 لیتری
حلب 20 لیتری

جهت دریافت مشاوره فنی، استعلام قیمت و ثبت سفارش با واحد فروش پالاژ شیمی تماس بگیرید.
Palaj Shimi Winding Varnish | Electric Motor Insulating Varnish with 210°C Thermal Resistance

Palaj Shimi Winding Varnish is a high-performance electrical insulating varnish based on saturated polyurethane resin, formulated from high-purity organic and inorganic chemical compounds. It forms a glossy, uniform coating with exceptional adhesion, ensuring mechanical stabilization of windings while enhancing both electrical insulation and thermal resistance.

This varnish is specifically designed for insulation and impregnation of various types of coils, light and heavy-duty electric motors, dynamos, transformers, and wound armatures.

Key Features
Great adhesion to copper and enameled wires
High thermal resistance up to 210°C
Enhanced dielectric strength
Excellent penetration into winding layers
Protective barrier against moisture and dust
Reduces vibration, operational noise, and wire movement
Extends the service life of electrical equipment
Suitable for both AC and DC systems

Applications
Palaj Shimi Winding Varnish is used for insulating and mechanically stabilizing windings in:
Dynamos
Heavy-duty industrial electric motors
Light-duty electric motors
Transformers
Armatures
Industrial coils
AC/DC wound electrical equipment

Technical Specifications
Current Type: AC / DC
Drying Time at 25°C: 2–4 hours
Thermal Resistance: 210°C
Flash Point: 110°C
Resin Base: Saturated Polyurethane
Application Type: Electrical insulation and winding stabilization

Preparation and Thinning
Dilute the contents of the container with Palaj Shimi Thinner 1124 to the appropriate ratio and mix thoroughly until the desired viscosity is achieved.
The dilution ratio may vary depending on the application method (immersion or brush).

Application Method
Pour a sufficient amount of varnish over the winding.
Fully immerse the component in the varnish container.
Use a brush to coat sensitive or hard-to-reach areas.
Allow to dry at ambient temperature (25°C).
For faster curing, the use of a controlled industrial drying oven is recommended.

Advantages of Using High-Quality Industrial Winding Varnish
Prevents short circuits
Increases mechanical strength of windings
Protects against moisture, contamination, and corrosion
Improves motor efficiency and operational safety
Reduces maintenance and repair costs

Why Choose Palaj Shimi Winding Varnish?
In industrial winding processes, varnish quality directly affects motor performance, safety, and durability. With a thermal resistance of 210°C and an industrial-grade formulation, Palaj Shimi Winding Varnish is a reliable solution for motor manufacturers and professional repair technicians.

Packaging & Sales
Available in:
0.5 Liter cans
1 Liter cans
4 Liter gallons
10 Liter containers
20 Liter pails

For technical consultation, price inquiries, and order placement, please contact Palaj Shimi Sales Department.
